Mechanically, Manually Actuated Valves

We are Manufacturer, Supplier, Exporter of Disc Rotary Valve, Rotary Valves, 4 Way 3 Position Disc Rotary Valve, Hand Slide Valve, Manually Actuated Valves, Mechanically Actuated Valves. Our setup is situated in Aurangabad, Maharashtra, India.

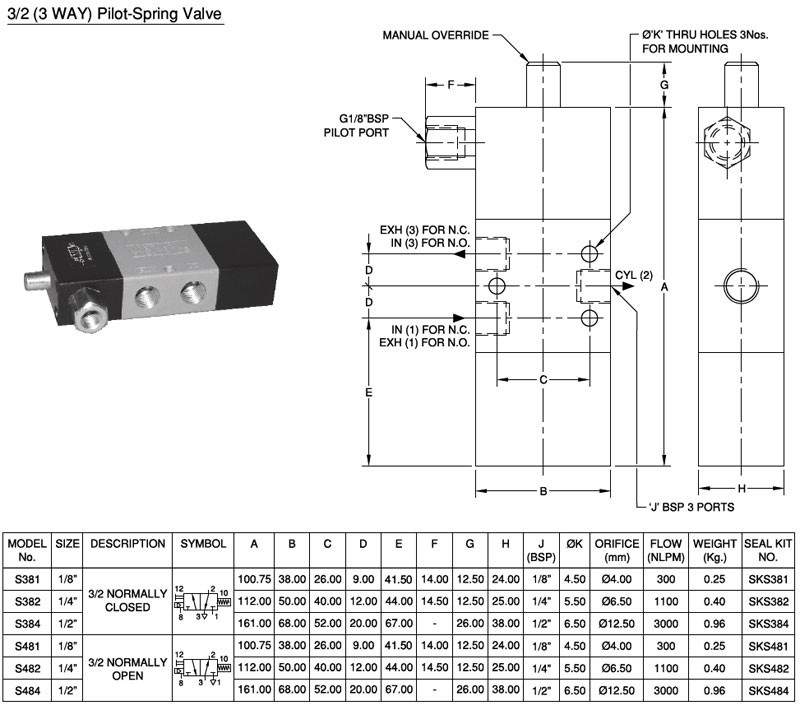

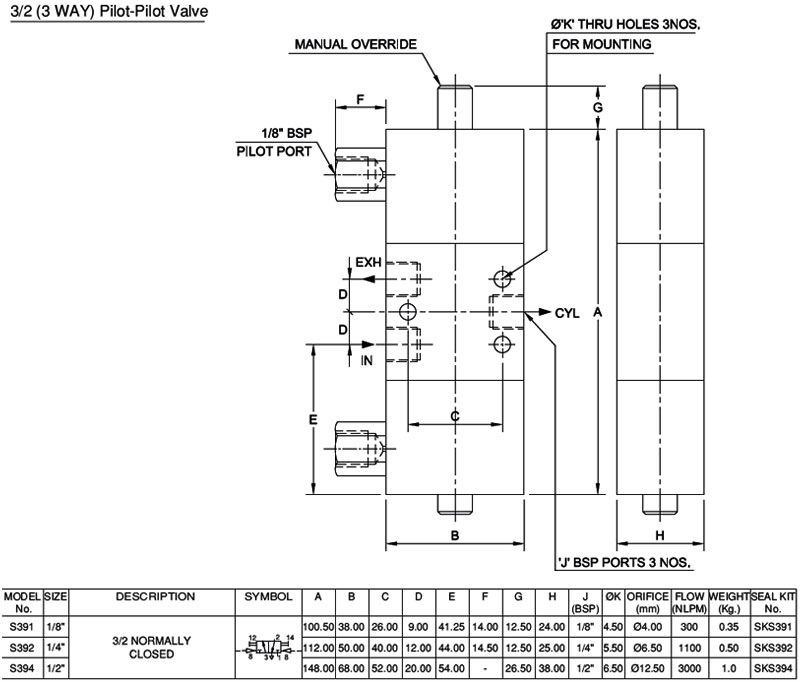

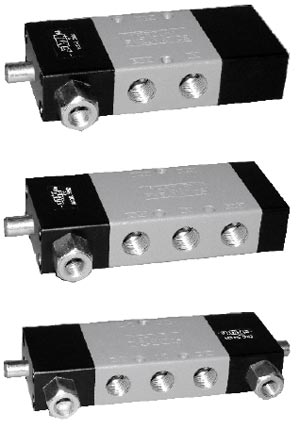

Spool Type Pneumatic Actuated Valves Series "S"

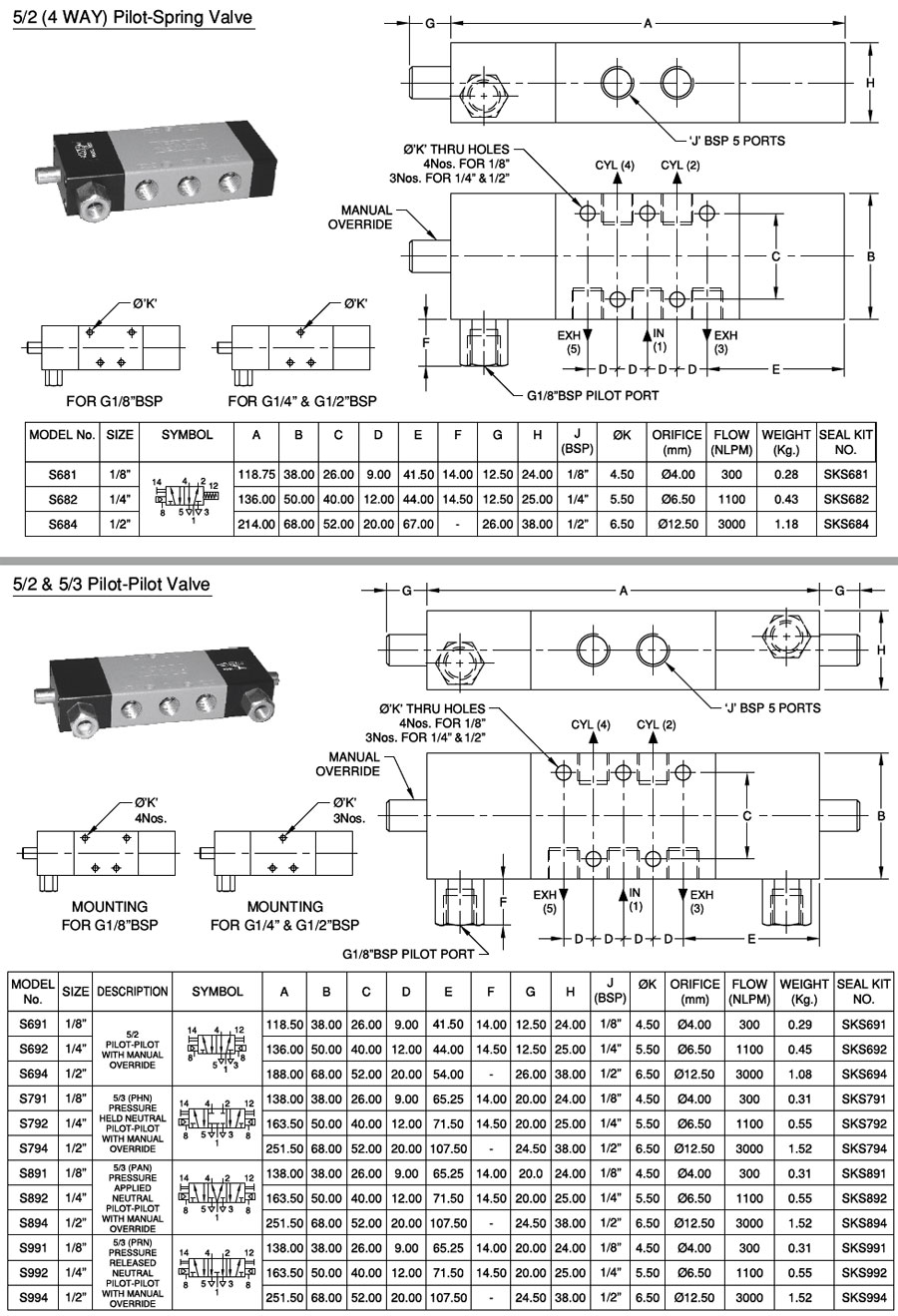

Series "S" 3/2, 5/2 & 5/3 Pilot-Spring & Pilot-Pilot valves

Spool Type Pneumatic Actuated Valves Series S
Mechanical Characteristic
Body Aluminium
Orifice Refer to technical data
Ports BSP Female
Seals Nitrile Rubber
Design Spool type
Weight Refer to technical data
Operating Conditions
Media Air (filtered 40μ & lubricated)
Temperature Range +5° to +50°C
Vacuum To -0.9 bar
Pressure Range 2.5 to 10 bar
Leakage Bubble Tight
Flow (NLPM) at 5 bar Refer to technical data

Spool Type Pneumatic Actuated Valves Series S

Spool Type Pneumatic Actuated Valves Series S
Mechanical Characteristic
Body Aluminium
Orifice Refer to technical data
Ports BSP Female
Seals Nitrile Rubber
Design Spool type
Weight Refer to technical data
Operating Conditions
Media Air (filtered 40μ & lubricated)
Temperature Range +5° to +50°C
Vacuum To -0.9 bar
Pressure Range 2.5 to 10 bar
Leakage Bubble Tight
Flow (NLPM) at 5 bar Refer to technical data

Spool Type Pneumatic Actuated Valves Series S
Spool Type Pneumatic Actuated Valves Series S

Download PDF    Request A Quote
Hand Slide Valves
hand-slide-valves
MODEL No.
DESCRIPTION
SIZE
(BSP)
ORIFICE
(mm)
SYMBOL
SEAL KIT
No.
SV2 3/2 HAND SLIDE VALVE 1/4" Ø6.50 img SKSV2
SV4 1/2" Ø12.50 SKSV4
SV5 3/4" Ø19.00 SKSV5
Download PDF    Request A Quote
R Series Disc Rotary Valves
r-series-disc-rotary-valves-1
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
R742L 4/3 PHN, HAND LEVER - DETENT VALVE 1/4" img SKR742L
R942L 4/3 PRN, HAND LEVER - DETENT VALVE 1/4" img SKR942L

r-series-disc-rotary-valves-2
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
R742LB 4/3 PHN, HAND LEVER - DETENT VALVE 1/4" img SKR742LB
R942LB 4/3 PRN, HAND LEVER - DETENT VALVE 1/4" img SKR942LB

r-series-disc-rotary-valves-3
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
R742K 4/3 PHN, SELECTOR KNOB - DETENT VALVE 1/4" img SKR742K
R942K 4/3 PRN, SELECTOR KNOB - DETENT VALVE 1/4" img SKR942K

r-series-disc-rotary-valves-4
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
R742KB 4/3 PHN, SELECTOR KNOB - DETENT VALVE 1/4" img SKR742KB
R942KB 4/3 PRN, SELECTOR KNOB - DETENT VALVE 1/4" img SKR942KB


Download PDF    Request A Quote
S Series
mechanically-and-mannually-actuated-valves-s-series-1
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S3121 3/2 NORMALLY CLOSED (N.C.) PLUNGER - SPRING VALVE 1/8" Valve Design SKS3121
S4121 3/2 NORMALLY OPEN (N.0.)
PLUNGER - SPRING VALVE 		1/8" Valve Design SKS4121
S6121 5/2 PLUNGER - SPRING VALVE 1/8" Valve Design SKS6121

mechanically-and-mannually-actuated-valves-s-series-2
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S371 3/2 NORMALLY CLOSED (N.C.) PALM BUTTON - SPRING VALVE 1/8" Valve Design SKS371
S471 3/2 NORMALLY OPEN (N.0.) PALM BUTTON - SPRING VALVE 1/8" Valve Design SKS471
S671 5/2 PALM BUTTON - SPRING VALVE 1/8" Valve Design SKS671

mechanically-and-mannually-actuated-valves-s-series-3
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S3131 3/2 NORMALLY CLOSED (N.C.) PUSH BUTTON - SPRING VALVE 1/8" Valve Design SKS3131
S4131 3/2 NORMALLY OPEN (N.0.) PUSH BUTTON - SPRING VALVE 1/8" Valve Design SKS4131
S6131 5/2 PUSH BUTTON - SPRING VALVE 1/8" Valve Design SKS6131

mechanically-and-mannually-actuated-valves-s-series-4
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S3101 3/2 NORMALLY CLOSED (N.C.) SELECTOR KNOB 2 POSITION VALVE 1/8" Valve Design SKS3101
S4101 3/2 NORMALLY OPEN (N.O.) SELECTOR KNOB 2 POSITION VALVE 1/8" Valve Design SKS4101
S6101 5/2 SELECTOR KNOB 2 POSITION VALVE 1/8" Valve Design SKS6101

mechanically-and-mannually-actuated-valves-s-series-5
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S3141 3/2 NORMALLY CLOSED (N.C.) ROLLER LEVER - SPRING VALVE 1/8" Valve Design SKS3141
S4141 3/2 NORMALLY OPEN (N.O.) ROLLER LEVER - SPRING VALVE 1/8" Valve Design SKS4141
S6141 5/2 ROLLER LEVER - SPRING VALVE 1/8" Valve Design SKS6141

mechanically-and-mannually-actuated-valves-s-series-6
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S372 3/2 NORMALLY CLOSED (N.C.) PALM BUTTON - SPRING VALVE 1/4" Valve Design SKS372
S374 1/2" SKS374
S472 3/2 NORMALLY OPEN (N.O.) PALM BUTTON - SPRING VALVE 1/4" Valve Design SKS472
S474 1/2" SKS474

mechanically-and-mannually-actuated-valves-s-series-7
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S672 5/2 PALM BUTTON - SPRING VALVE 1/4" Valve Design SKS672
S674 1/2" SKS674

mechanically-and-mannually-actuated-valves-s-series-8
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S302 3/2 NORMALLY CLOSED (N.C.) PALM BUTTON - DETENT VALVE 1/4" Valve Design SKS302
S304 1/2" SKS304
S402 3/2 NORMALLY OPEN (N.0.) PALM BUTTON - DETENT VALVE 1/4" Valve Design SKS402
S404 1/2" SKS404

mechanically-and-mannually-actuated-valves-s-series-9
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S602 5/2 PALM BUTTON DETENT VALVE 1/4" Valve Design SKS602
S604 1/2" SKS604

mechanically-and-mannually-actuated-valves-s-series-10
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
MS652 5/2 FOOT PEDAL -SPRING VALVE WITH LATCH 1/4" Valve Design SKMS652
MS652G 5/2 FOOT PEDAL -SPRING VALVE WITH GUARD SKMS652G

mechanically-and-mannually-actuated-valves-s-series-11
MODEL No. DESCRIPTION SIZE
(BSP) 		SYMBOL SEAL KIT
No.
S362 3/2 NORMALLY CLOSED (N.C.) DIRECT ROLLER - SPRING VALVE 1/4" img SKS362
S462 3/2 NORMALLY OPEN (N.0.) DIRECT ROLLER - SPRING VALVE 1/4 " img SKS462

mechanically-and-mannually-actuated-valves-s-series-12
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S662 5/2 DIRECT ROLLER - SPRING VALVE 1/4" Valve Design SKS662

mechanically-and-mannually-actuated-valves-s-series-13
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S332 3/2 NORMALLY CLOSED (N.C.)
HAND LEVER - SPRING VALVE 		1/4" Valve Design SKS332
S334 3/2 NORMALLY OPEN (N.O.) HAND LEVER - SPRING VALVE 1/2" SKS334
S432 3/2 NORMALLY CLOSED (N.C.)
HAND LEVER - SPRING VALVE 		1/4" Valve Design SKS432
S434 3/2 NORMALLY OPEN (N.0.) HAND LEVER - SPRING VALVE 1/2" SKS434

mechanically-and-mannually-actuated-valves-s-series-14
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S632 5/2 HAND LEVER - SPRING VALVE 1/4" Valve Design SKS632
S634 1/2" SKS634

mechanically-and-mannually-actuated-valves-s-series-15
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S342 3/2 NORMALLY CLOSED (N.C.) HAND LEVER - DETENT VALVE 1/4" Valve Design SKS342
S442 3/2 NORMALLY OPEN (N.O.) HAND LEVER - DETENT VALVE 1/4" Valve Design SKS442

mechanically-and-mannually-actuated-valves-s-series-16
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S344 3/2 NORMALLY CLOSED (N.C.) HAND LEVER - DETENT VALVE 1/2" Valve Design SKS344
S444 3/2 NORMALLY OPEN (N.0.) HAND LEVER - DETENT VALVE 1/2" Valve Design SKS444

mechanically-and-mannually-actuated-valves-s-series-17
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S642 5/2 HAND LEVER - DETENT VALVE 1/4" Valve Design SKS642

mechanically-and-mannually-actuated-valves-s-series-18
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S644 5/2 HAND LEVER - DETENT VALVE 1/2" Valve Design SKS644

mechanically-and-mannually-actuated-valves-s-series-19
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S742 5/3 PHN, HAND LEVER - DETENT VALVE 1/4" Valve Design SKS742
S842 5/3 PAN, HAND LEVER - DETENT VALVE 1/2" Valve Design SKS842
S942 5/3 PRN, HAND LEVER - DETENT VALVE 1/4" Valve Design SKS942

mechanically-and-mannually-actuated-valves-s-series-20
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S744 5/3 PHN, HAND LEVER - DETENT VALVE 1/2" Valve Design SKS744
S844 5/3 PAN, HAND LEVER - DETENT VALVE 1/2" Valve Design SKS844
S944 5/3 PRN, HAND LEVER - DETENT VALVE 1/2" Valve Design SKS944

mechanically-and-mannually-actuated-valves-s-series-21
MODEL No.
DESCRIPTION
SIZE
(BSP)
SYMBOL
SEAL KIT
No.
S732 5/3 PHN, HAND LEVER - SPRING
CENTERED VALVE 		1/4" Valve Design SKS732
S734 1/2"
12 SKS734
S832 5/3 PAN, HAND LEVER - SPRING
CENTERED VALVE 		1/4" Valve Design SKS832
5834 1/2" SKS834
S932 5/3 PRN, HAND LEVER - SPRING
CENTERED VALVE 		1/4" Valve Design SKS932
S934 1/2" SKS934


Download PDF    Request A Quote
